Universal Spacer Disc Assembly for Wheel Balancers with #10 Collet | 2056
Universal Spacer Disc Assembly for Wheel Balancers with #10 Collet | 2056
Universal Spacer Disc Assembly for Wheel Balancers with #10 Collet (part 2056) for professional shop service.
Why this part
Correct wheel mounting is the foundation of a repeatable balance; this exact size and part number helps match the balancer to the wheels your shop services.
Fitment, specifications, and contents

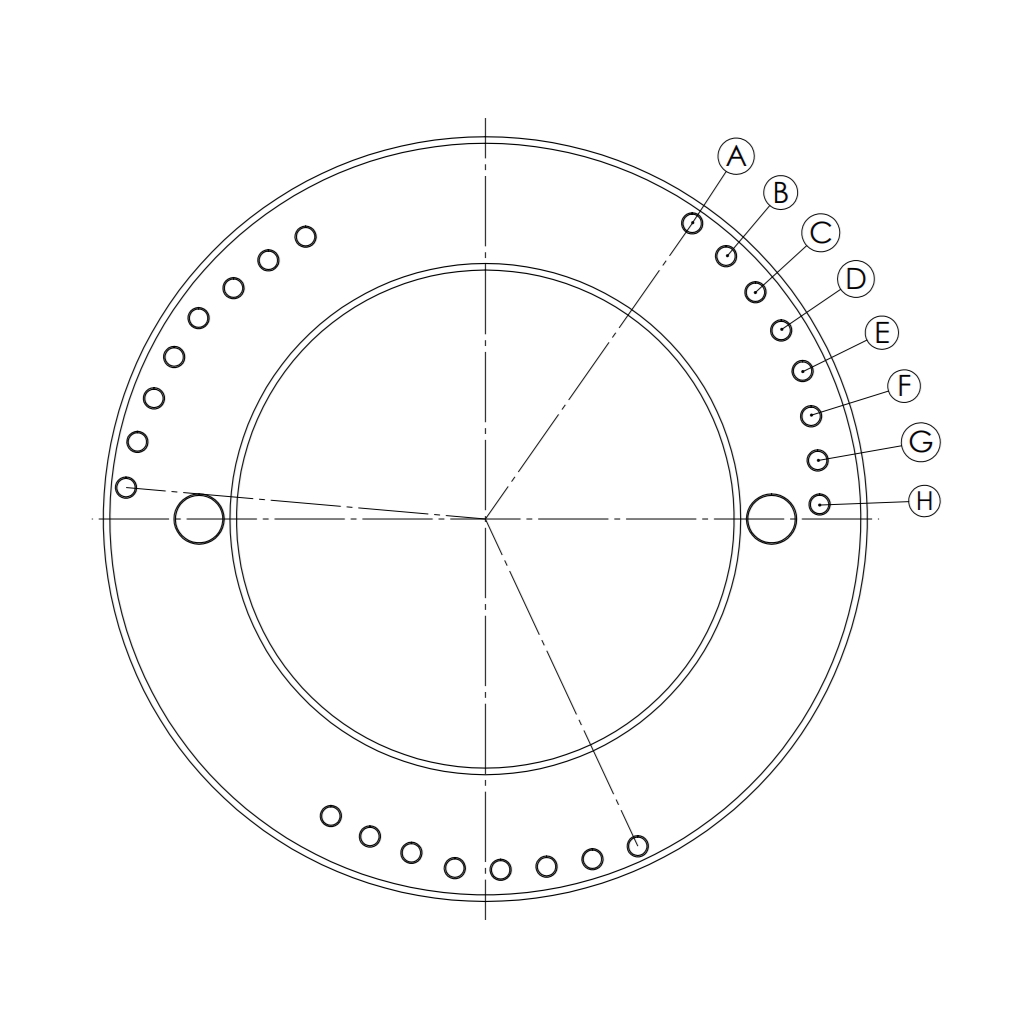

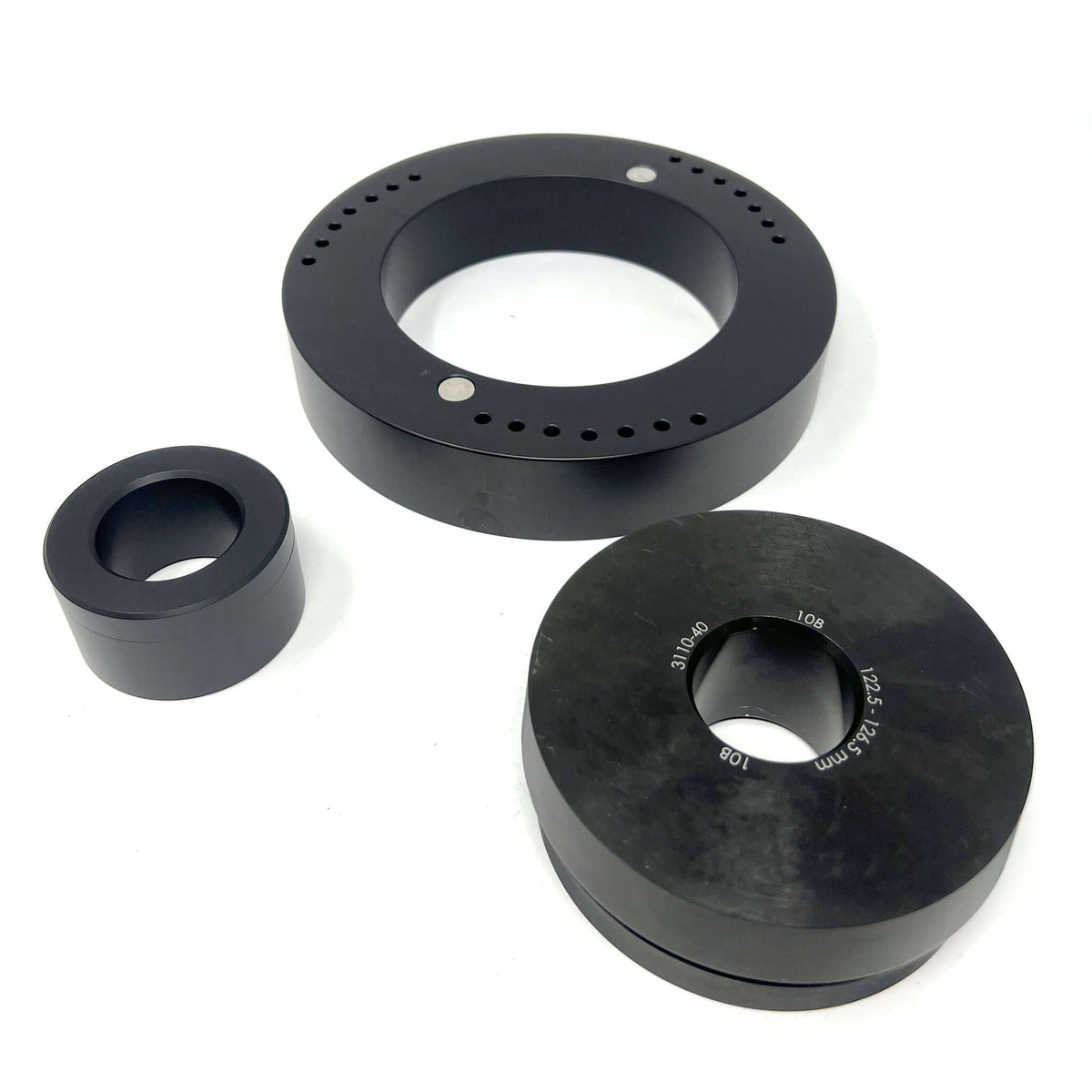

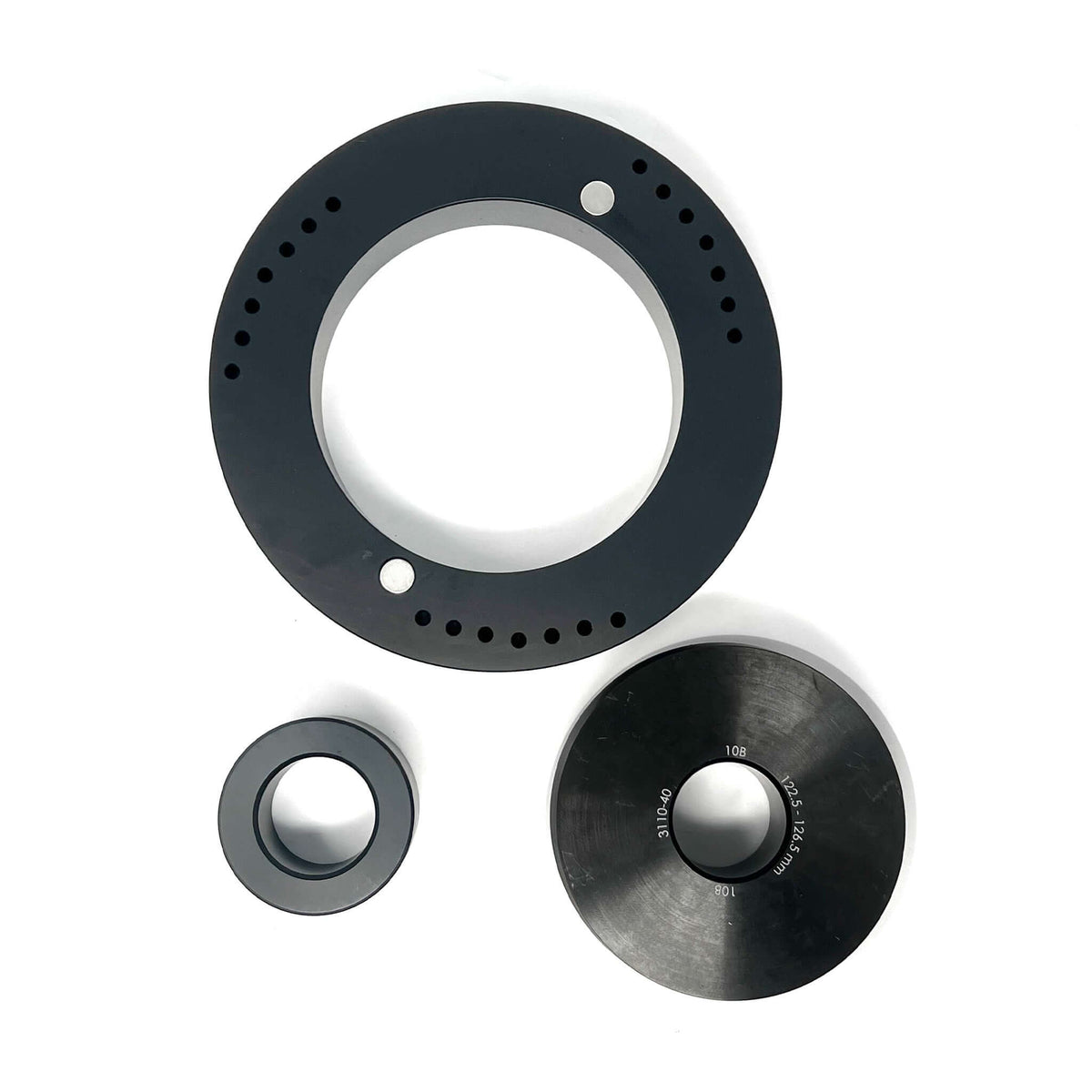

Universal Spacer Disc Assembly for Wheel Balancers with #10 Collet Includes: (1) - 2055 Universal Spacer Disc (1) - 3110-40 Low Taper Collet - 4.7" - 4.9" - #10 Designed for all makes and models of Wheel Balancer. Provides added clearance for larger cones and collets. Can also be used to offset wheel flange mounting on high positive offset rims. Necessary tool for back-coning and balancing wheels with 8 x 6.5", 8 x 170mm, and 8 x 180mm bolt patterns with large bores. Similar to: Snap-On EEWB3-5A, Hunter 46-653-2, Coats 560639401, 667420103188 and more. INSTRUCTIONS: 1. The universal spacer disk must be centered on the balancer to work properly 2. With your fingers, press the three supplied dowel pins into the hole pattern that matches your wheel balancer 3. Mount the universal spacer disc to the wheel balancer to ensure the dowel pin pattern is correct 4. Pound or press the dowel pins to ensure they are fully engaged in the holes Hole Bolt Circle Machine Application A Ø7.495 190.5mm Accu, Beissbarth, Facom, Fasep, Hunter, Sicam, Sun B Ø7.402 188.0mm Corghi 2023+ C Ø7.323 186.0mm Corghi, Falp, Fasep, Mondolfo, Muller Bem, Sice D Ø7.283 185.0mm Accu, Balco, Hofmann, JBC, Snap-On E Ø7.268 184.6mm Corghi F Ø7.087 180.0mm Accu, CEMB, Coats, FMC, Ravaglioli, Rema Tip Tip G Ø7.000 178.0mm Coats, Mondolfo H Ø6.937 176.2mm Balco, JBC, Sun Replacement 4018 Spacer Donut Diagram/Instructions Made in the USA !
Check fit before ordering: Match the machine or vehicle application, dimensions, and part number to your service needs.
