20-PROAAB-40 Automatic-Shaft SpeedPlate Pro System with Storage Board

Why this kit: This ball-style automatic-shaft SpeedPlate Pro kit gives technicians fast, one-handed lug-pattern adjustment and organized wall storage. Confirm the automatic clamping configuration before ordering.

SpeedPlate Pro lug-centric clamping system configured for automatic wheel-balancer shafts. The adjustable plates apply even pressure through the lug holes for fast, repeatable wheel mounting on passenger-car, SUV, and light-truck wheels.

• Part Number: 20-PROAAB-40

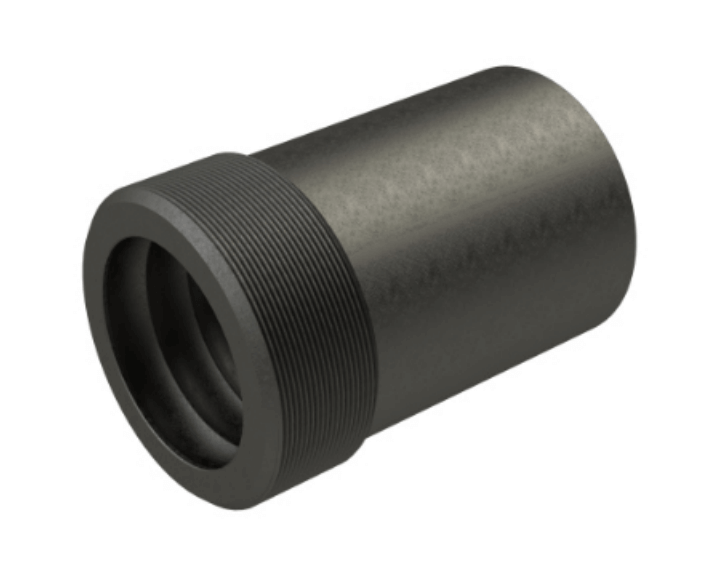

• For automatic clamping 40 mm wheel-balancer shafts
• Ball-style configuration
• Fits 4-, 5-, 6-, and 8-lug wheels
• Bolt-pattern range: 95.25–180 mm (3.75–7.08 inches)

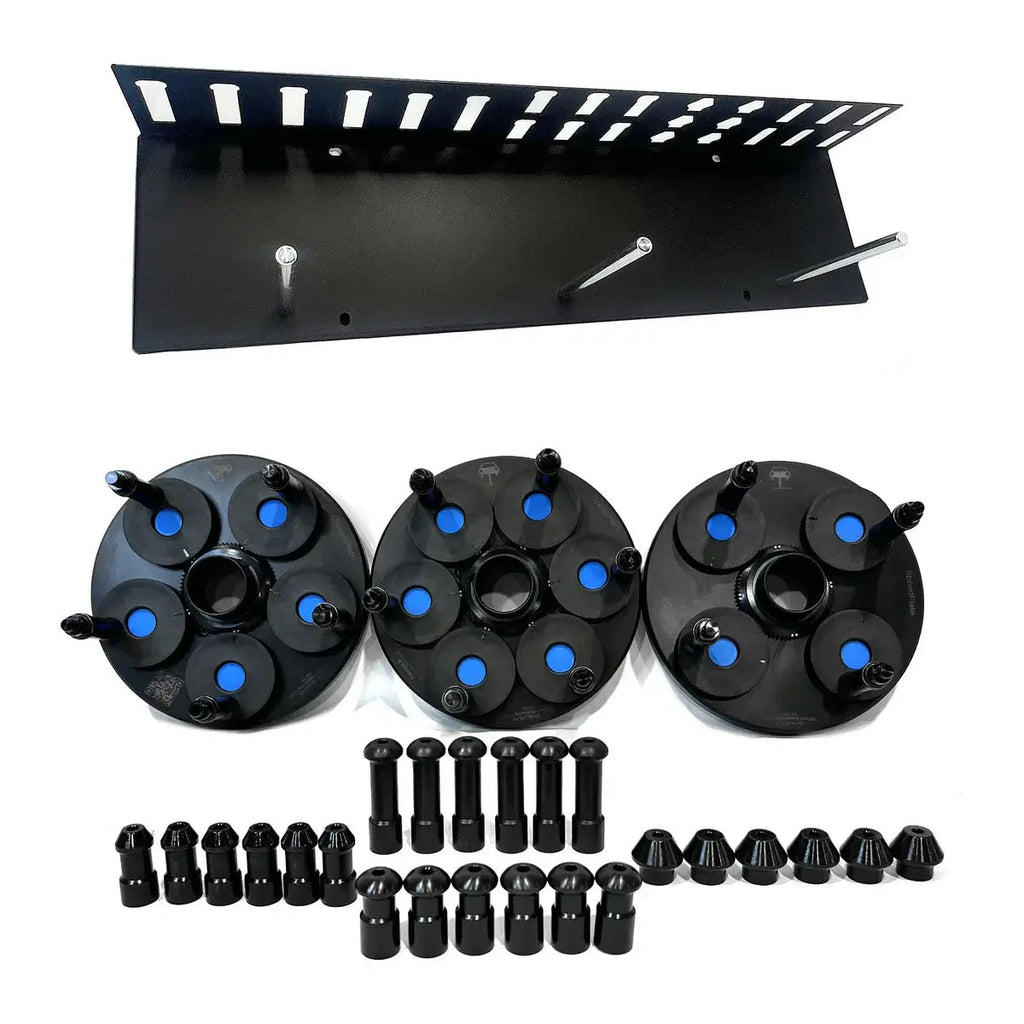

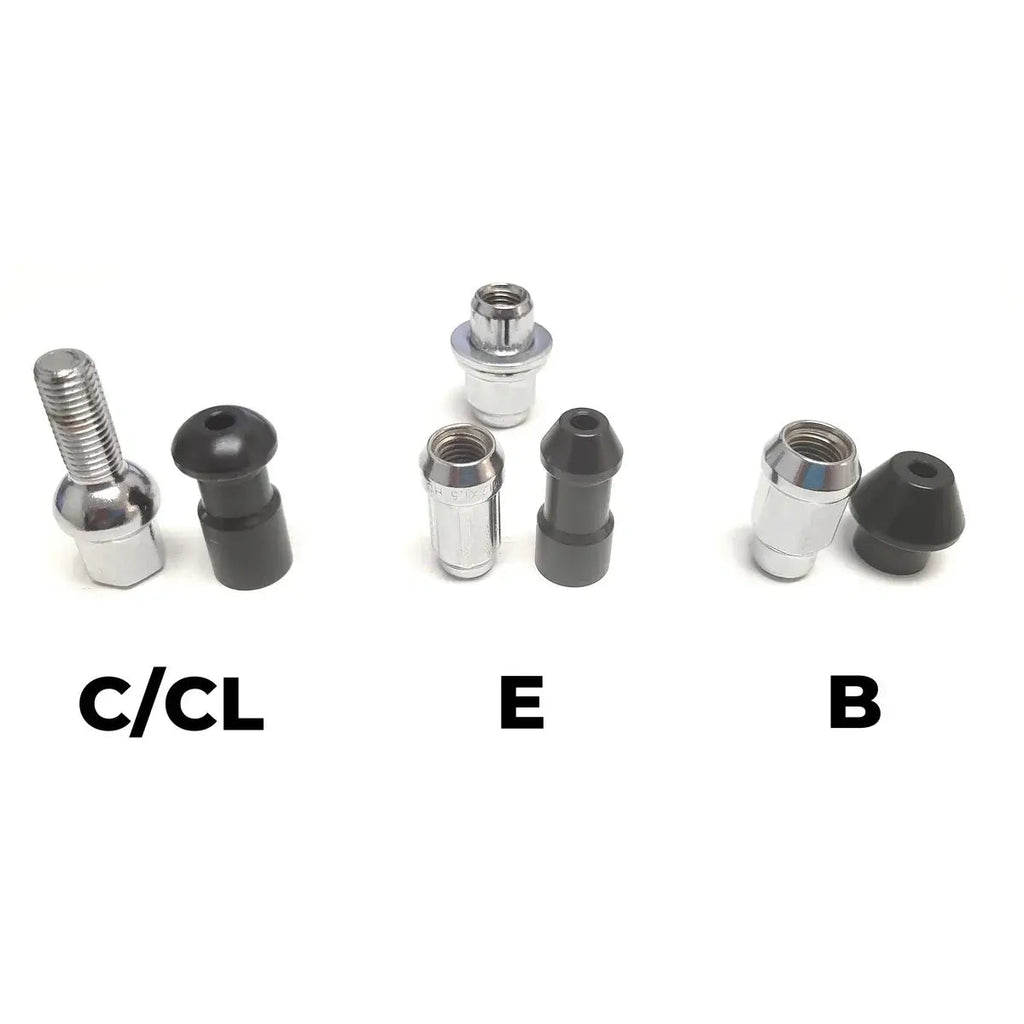

• Includes three SpeedPlates, four sets of torque tips, and storage board
• One-handed bolt-pattern adjustment
• Similar to Snap-on EEWB3-1A, Corghi 900200400A, Haweka WB4029-40, Coats 8113841, and Hunter 20-2123-2

Important fitment note: This kit is for an automatic clamping shaft—not a standard threaded-shaft setup. The shaft must be at least 8 inches long. Confirm shaft type, diameter, and usable length before ordering.

Need help confirming fitment? Contact Dore & Company with your wheel-balancer make and model. If you do not see the equipment or part your shop needs, ask us—we will help find it.
