20-5LUGTT-40 5-Lug SpeedPlate with C, C Long & E Torque Tips

Why this kit: Many balancing problems begin with how the wheel is mounted. This 5-lug SpeedPlate presses at the lug holes, closer to the way the wheel mounts on the vehicle. It helps a shop center compatible wheels consistently while limiting contact with decorative wheel surfaces. The three included torque-tip styles give technicians options for different lug seats without buying a full multi-plate system.

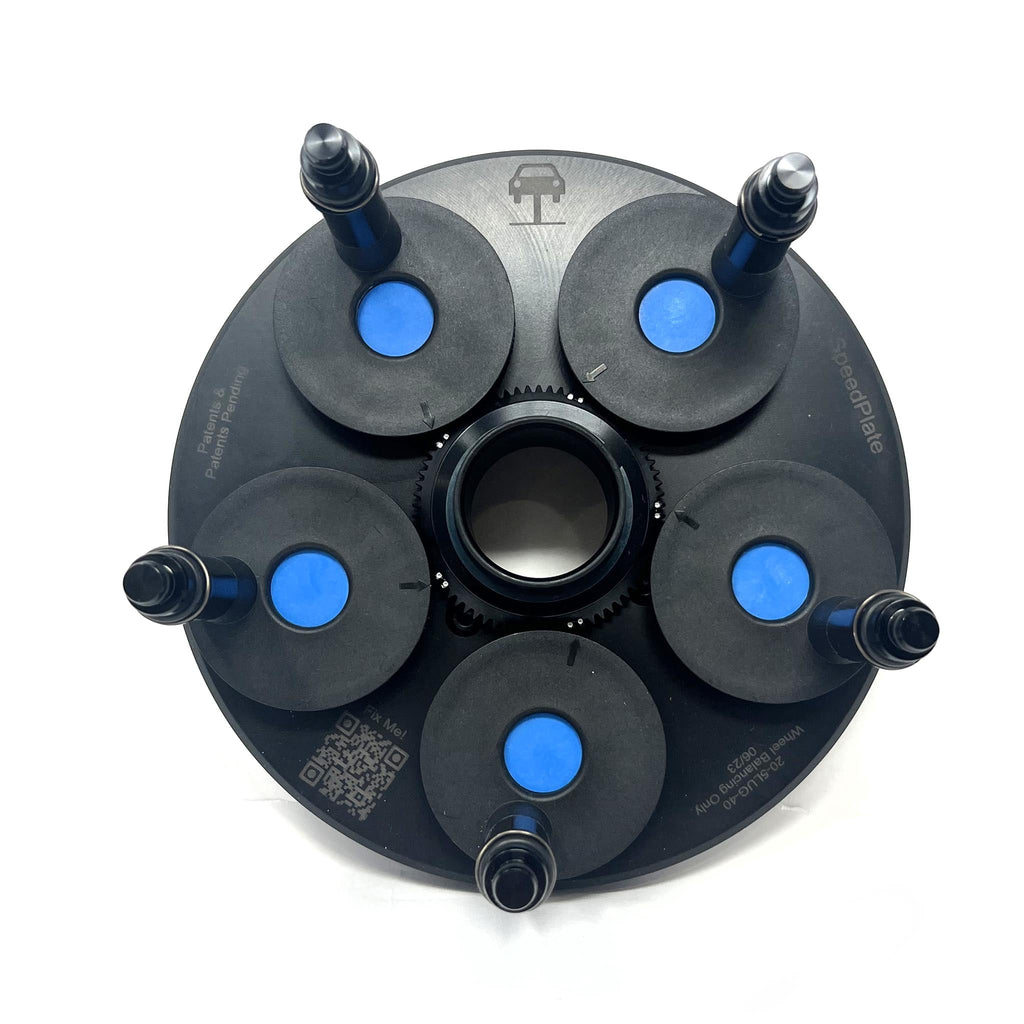

5-Lug SpeedPlate with C, C Long and E torque tips

The MT-RSR 20-5LUGTT-40 is a focused choice for shops that frequently service 5-lug passenger cars, SUVs and light trucks. Its adjustable design supports quick, one-handed bolt-pattern changes. MT-RSR designs and manufactures SpeedPlate.

What it can help solve

• Repeatable mounting: Pressure at the lug holes helps seat the wheel straight against the balancer faceplate.
• Wheel-finish care: Lug-hole contact helps avoid pressing on decorative wheel faces, including some plastic-clad and aftermarket wheels.
• Fewer setup frustrations: A faster, more consistent mounting process can reduce time spent chasing weights or investigating a vibration after balancing.
• Daily shop handling: The lightweight plate has a rear finger grip and a modular gear design that can be reassembled if its gears release when dropped.

Fitment and specifications

• Manufacturer and part number: MT-RSR 20-5LUGTT-40
• Wheel applications: 5-lug passenger-car, SUV and light-truck wheels
• Bolt-pattern range: 95.25–180 mm PCD
• Balancer: 40 mm shaft with at least 8 inches of usable length
• Configuration: Standard threaded shaft; a compatible AutoClamp handle is sold separately for an automatic-shaft setup

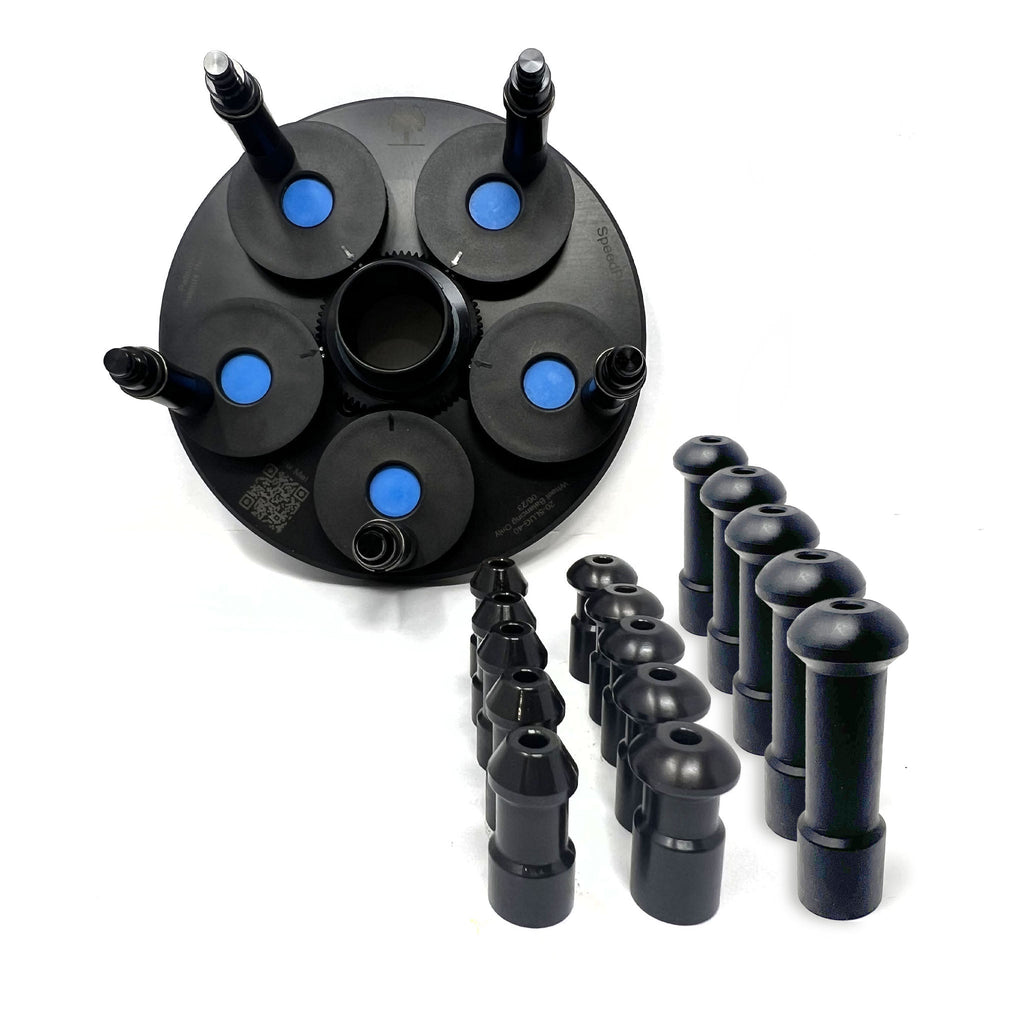

What is included

• One adjustable 5-lug SpeedPlate

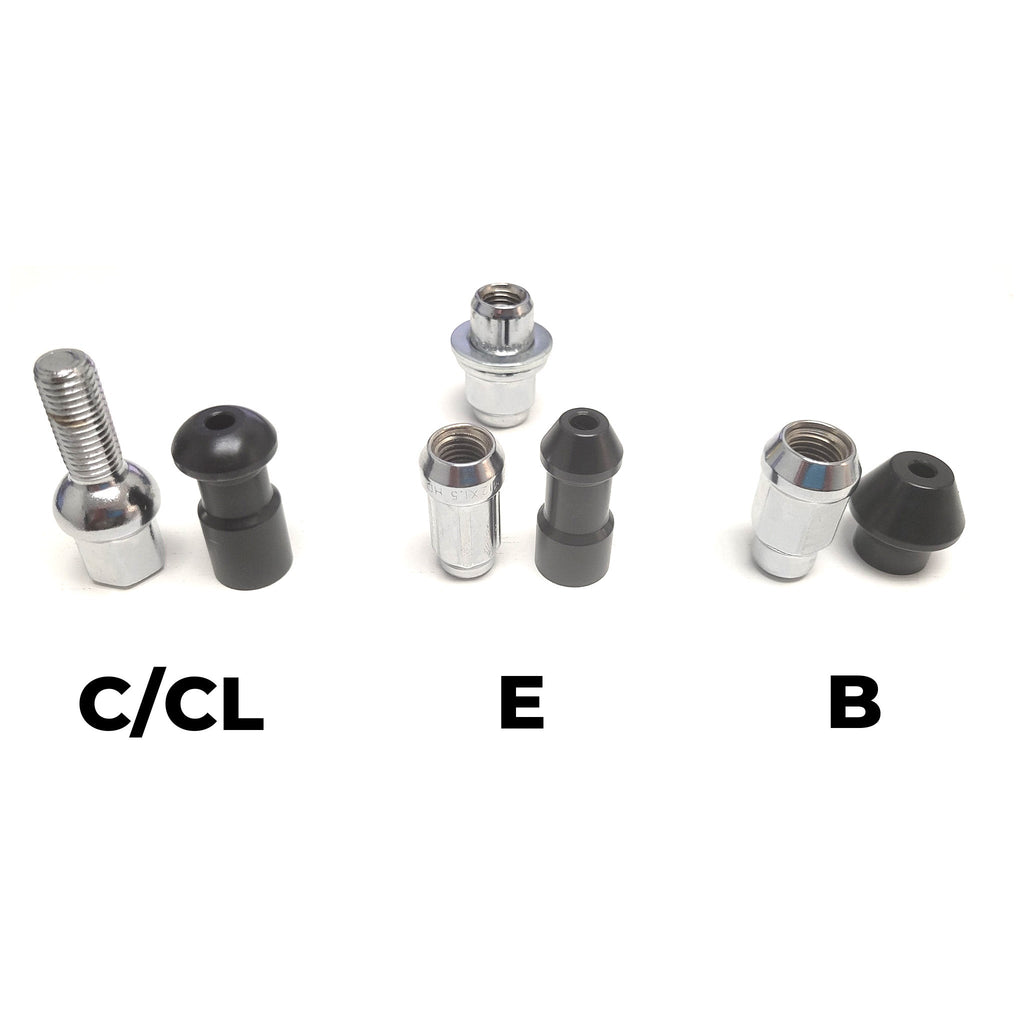

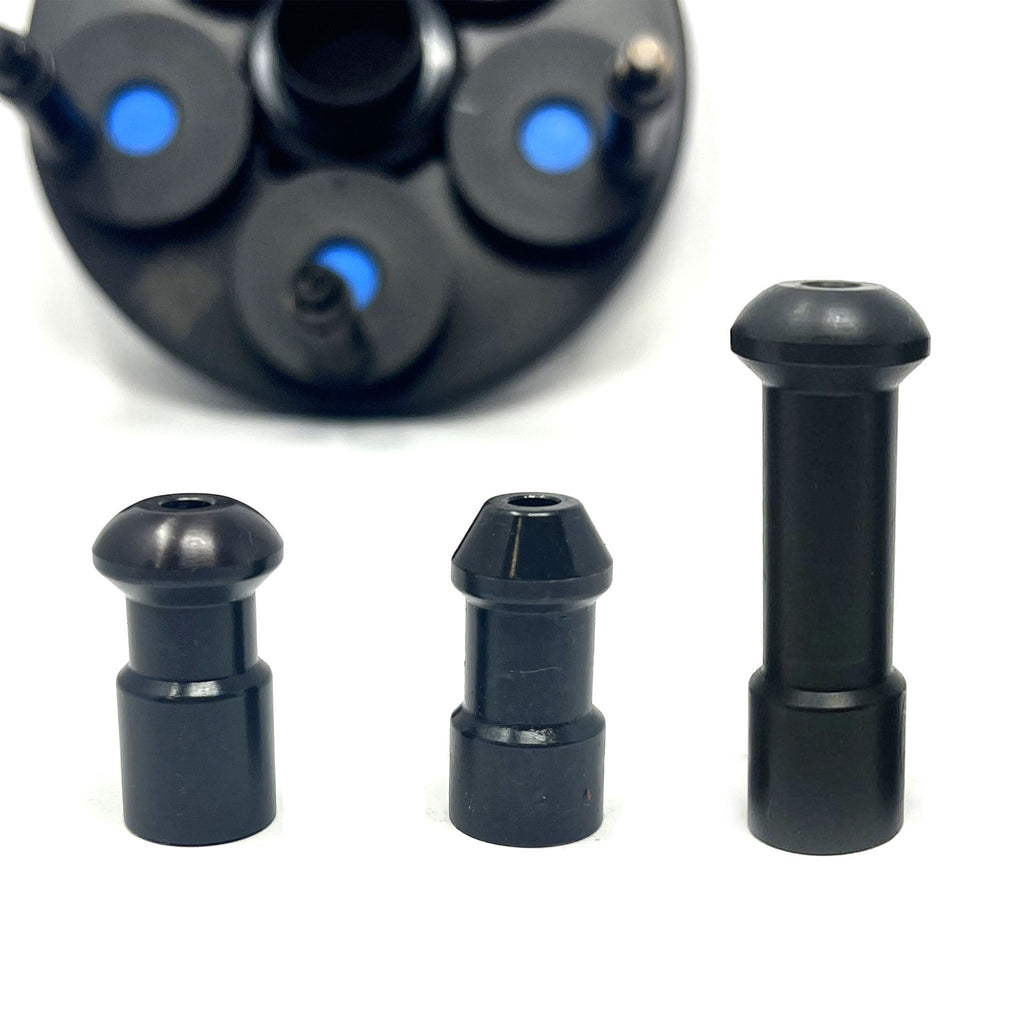

• Five Style C torque tips
• Five Style C Long torque tips
• Five Style E torque tips

Choose this kit if: Most of your work is on 5-lug wheels and you want a dedicated plate with the three listed tip styles. For additional lug patterns, compare a combination plate or a complete SpeedPlate system.

Check fitment before ordering: Confirm the balancer shaft diameter, shaft type and usable length, plus the wheel’s bolt pattern and lug-seat style. Tell Dore & Company your balancer make and model and the wheels you service if you would like help selecting the right setup.
